Application Overview

Micro-Electro-Mechanical Systems (MEMS) integrate electrical and mechanical elements onto a single chip, typically forming sensors or actuators. Ensuring the performance and reliability of MEMS requires the characterization of both their electrical and mechanical properties.

Mechanical MEMS testing involves applying a precisely-controlled force to the MEMS structure and measuring the resulting deflection. Alternatively, an actuation voltage can be applied to the MEMS structure to measure the resulting force or deflection, or the electrical output signal of a MEMS device can be monitored in response to an applied force or deflection.

Array of MEMS devices being tested for mechanical and electrical properties.

Application Examples

Piezoresistive Cantilever Testing

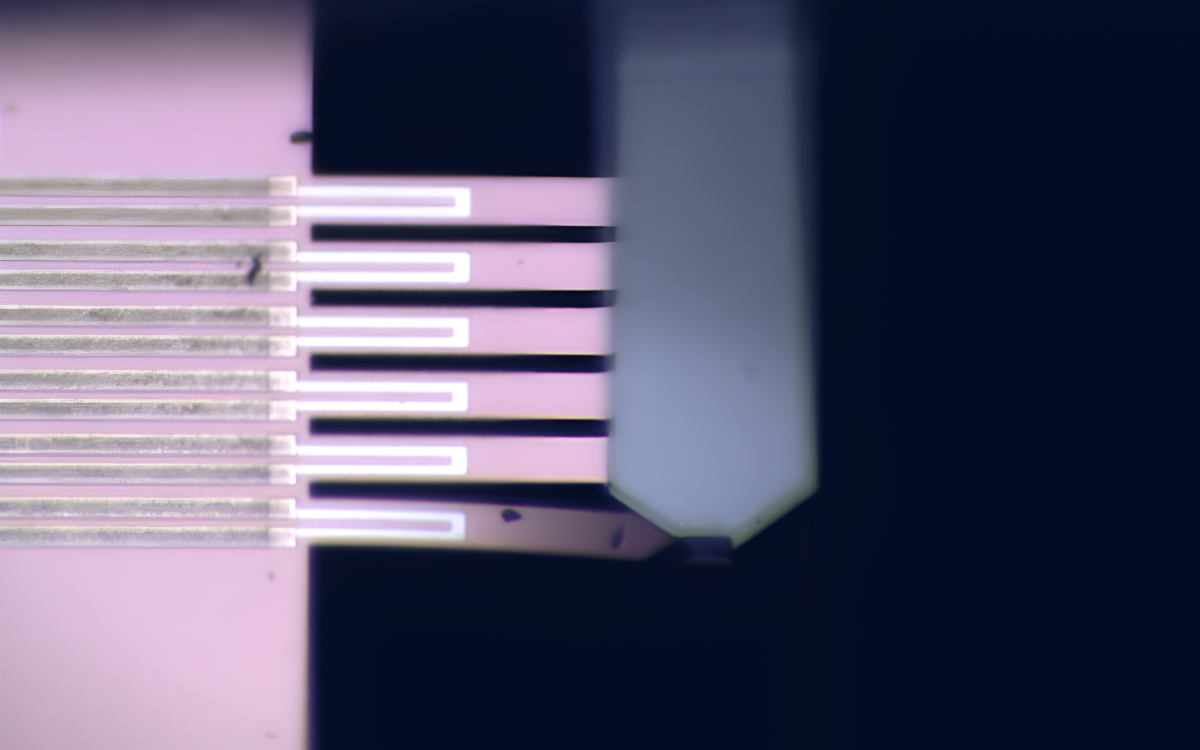

Close-up of a MEMS chip with cantilevers, highlighting integrated piezoresistive sensors for force measurement.

A common sensing principle of MEMS-based sensors involves the inclusion of a piezoresistive element into the sensing structure. As the sensing element is strained, the electrical resistance of the piezoresistive element changes.

To increase the efficiency of dip-pen nanolithography systems, the MEMS chip shown here features an array of six cantilevers for parallel writing. To correct for the tilt angle between the cantilever array and the sample substrate, each cantilever is equipped with a piezoresistive sensor that measures the contact force of each cantilever. The piezoresistive elements have been fabricated through ion implantation, and a Wheatstone bridge has been integrated into the system to accurately convert the small resistance change into a voltage change.

In this application example, the stiffness of each cantilever is investigated in an automated manner. Consistent stiffness within the array is important property that determines the performance of the MEMS chip.

Electroactive Polymer Testing

Electroactive Polymer Actuator Testing

Video and graphs displaying the deflection and force response of an electroactive polymer actuator under electrical stimulation.

Conjugated or conducting polymers are receiving significant attention as smart materials for novel microfabricated devices, such as actuators and sensors. In this application, the deflection range, actuation force, and time response of the beam-shaped electroactive polymer (EAP) actuator are tested.

Beam-shaped microactuators are clamped between two electrodes, enabling the application of the actuation signal to drive the microactuator. The top graph illustrates the maximum deflection of the EAP actuator beam versus the actuation voltage. The lower graph shows the driving force generated by the EAP actuator, as well as the square-wave driving signal plotted versus time.
